Clayton Off Road Tie Rod Steering Stabilizer Clamp Mount for Jeep Wrangler JK/JL and Gladiator JT

Is This for You?

• You're installing the Clayton COR-5209010 stabilizer relocation bracket on your JL or JT and need the tie rod clamp mount to complete the system — this is the tie rod side of the COR-5209010 installation: the clamp mounts to the factory or aftermarket tie rod and provides the stud mount and hardware for the steering stabilizer end. Required for JL/JT installs of COR-5209010.
• You're running a JK and want to add a tie rod-mounted stabilizer stud without modifying the factory tie rod — this clamp fits the JK's 1-3/8" factory tie rod and provides a stud mount for the stabilizer end, compatible with factory and most aftermarket stabilizers.
• You're running a custom or aftermarket tie rod or drag link up to 1-5/8" diameter and need a stabilizer mount that clamps to the rod — this clamp fits any aluminum or steel rod up to 1-5/8" OD, making it compatible with the JL/JT factory 1-5/8" tie rod, the JK factory 1-3/8" tie rod, and most aftermarket bars in that diameter range.

The Result

• Tie rod clamp stabilizer mount — clamps to rods up to 1-5/8" OD (aluminum or steel). Provides stud mount and hardware for factory or most aftermarket steering stabilizers.
• Required companion part for COR-5209010 JL/JT stabilizer relocation bracket — the COR-5209010 axle bracket raises the stabilizer above the tie rod; this clamp provides the tie rod-side mount point.
• Compatible with JK (1-3/8" tie rod), JL/JT (1-5/8" tie rod), and custom/aftermarket rods up to 1-5/8" OD.

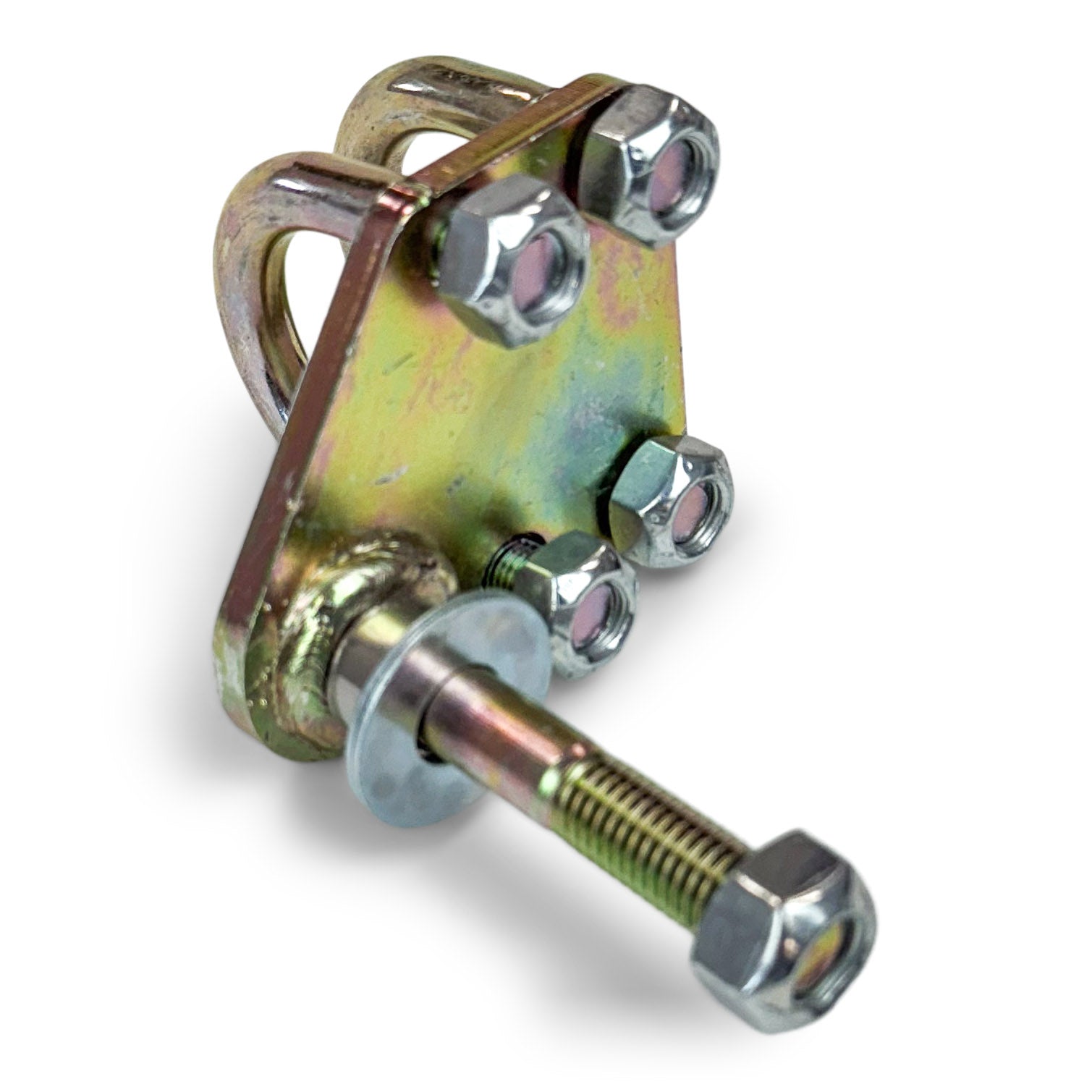

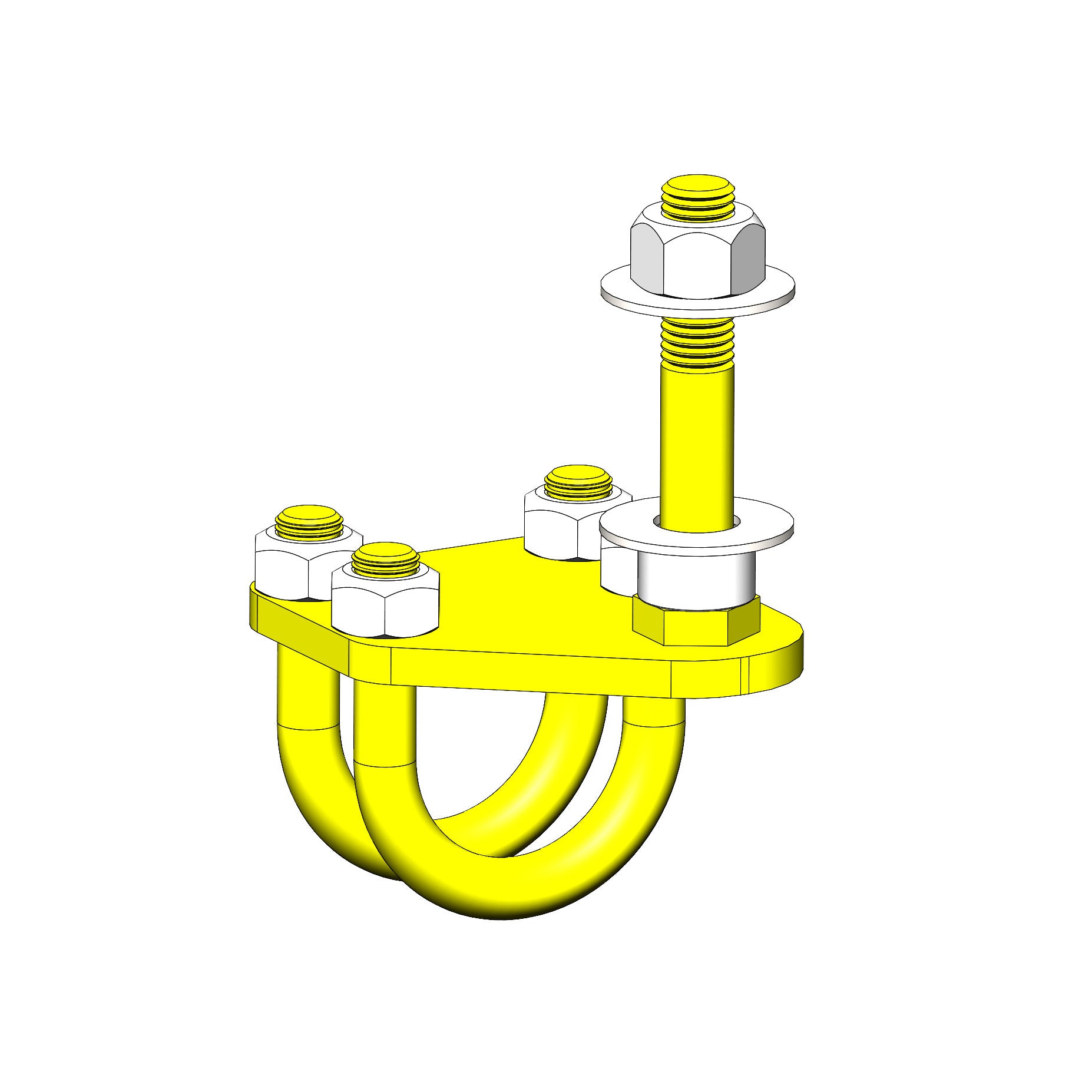

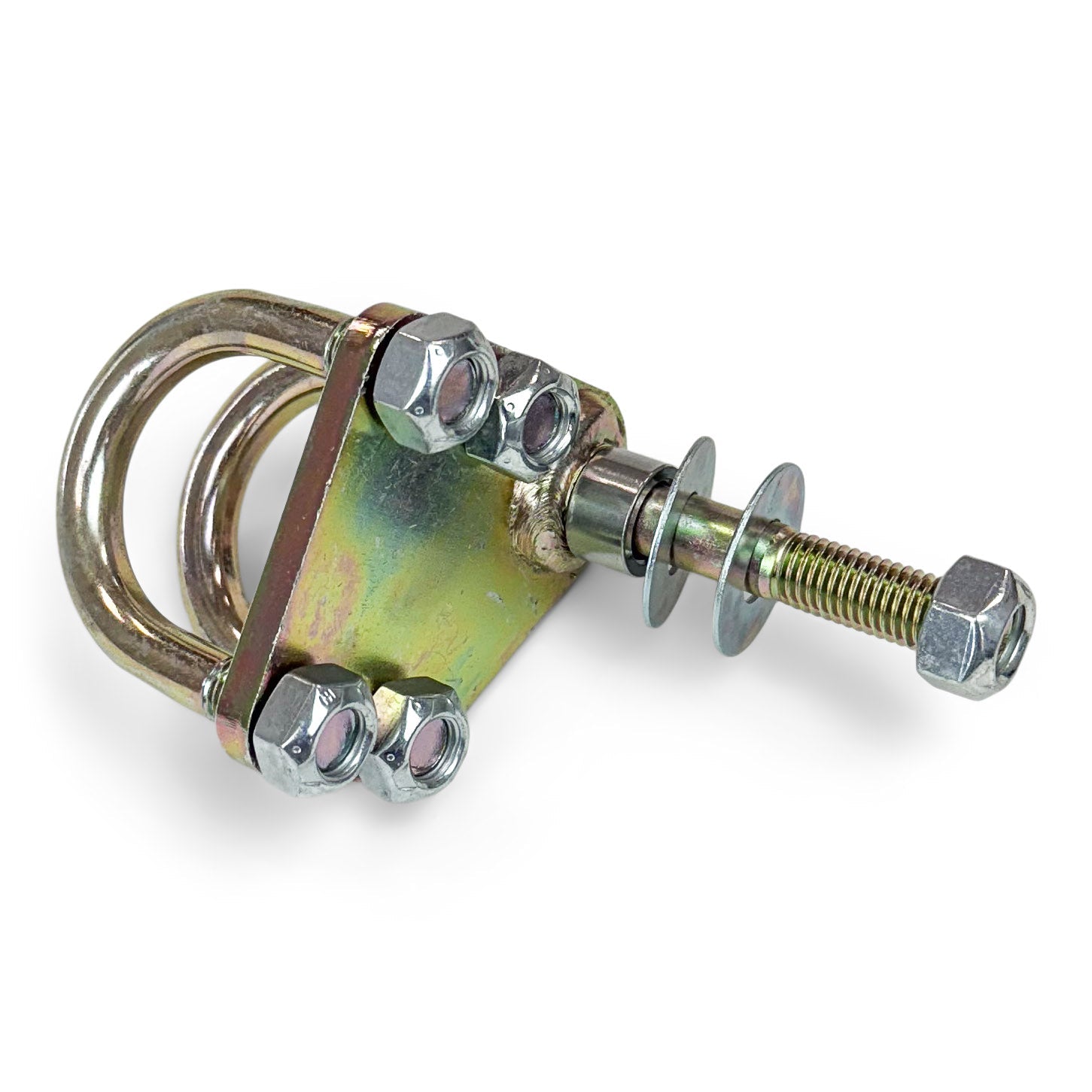

The COR-5200940 is Clayton Off Road's tie rod steering stabilizer clamp mount for the Jeep Wrangler JK, JL, and Gladiator JT. The clamp mounts to the tie rod or drag link and provides a stud mount and hardware for the steering stabilizer end, compatible with factory and most aftermarket stabilizers. It is the required tie rod-side companion part for the COR-5209010 stabilizer relocation bracket on JL and JT installations — the COR-5209010 raises the stabilizer above the tie rod at the axle end, and this clamp provides the corresponding tie rod-side mount point. The clamp fits any aluminum or steel rod up to 1-5/8" OD, covering the JK factory 1-3/8" tie rod, the JL/JT factory 1-5/8" tie rod, and custom or aftermarket bars within that diameter range. For JL/JT owners who want the complete packaged solution, COR-5209011 includes both the COR-5209010 axle bracket and this clamp (COR-5200940) in one kit. See drawings under the Instructions tab for dimensional details.

Audit Table

Verified Fitment (OFAS Standard)

✅ Fits 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) — Stock 1-3/8" Tie Rod
✅ Fits 2018–2026 Jeep Wrangler JL (2-Door and 4-Door) — Stock 1-5/8" Tie Rod
✅ Fits 2020–2026 Jeep Gladiator JT — Stock 1-5/8" Tie Rod
✅ Compatible with custom/aftermarket tie rods and drag links up to 1-5/8" OD (aluminum or steel)
❌ Does NOT fit rods exceeding 1-5/8" OD — verify your tie rod or drag link diameter before ordering
❌ Does NOT fit Jeep Wrangler TJ/LJ (1997–2006) — different front steering geometry
❌ Does NOT fit Jeep Cherokee XJ or Grand Cherokee ZJ/WJ — different front steering architecture

Installation & Fabrication Notes

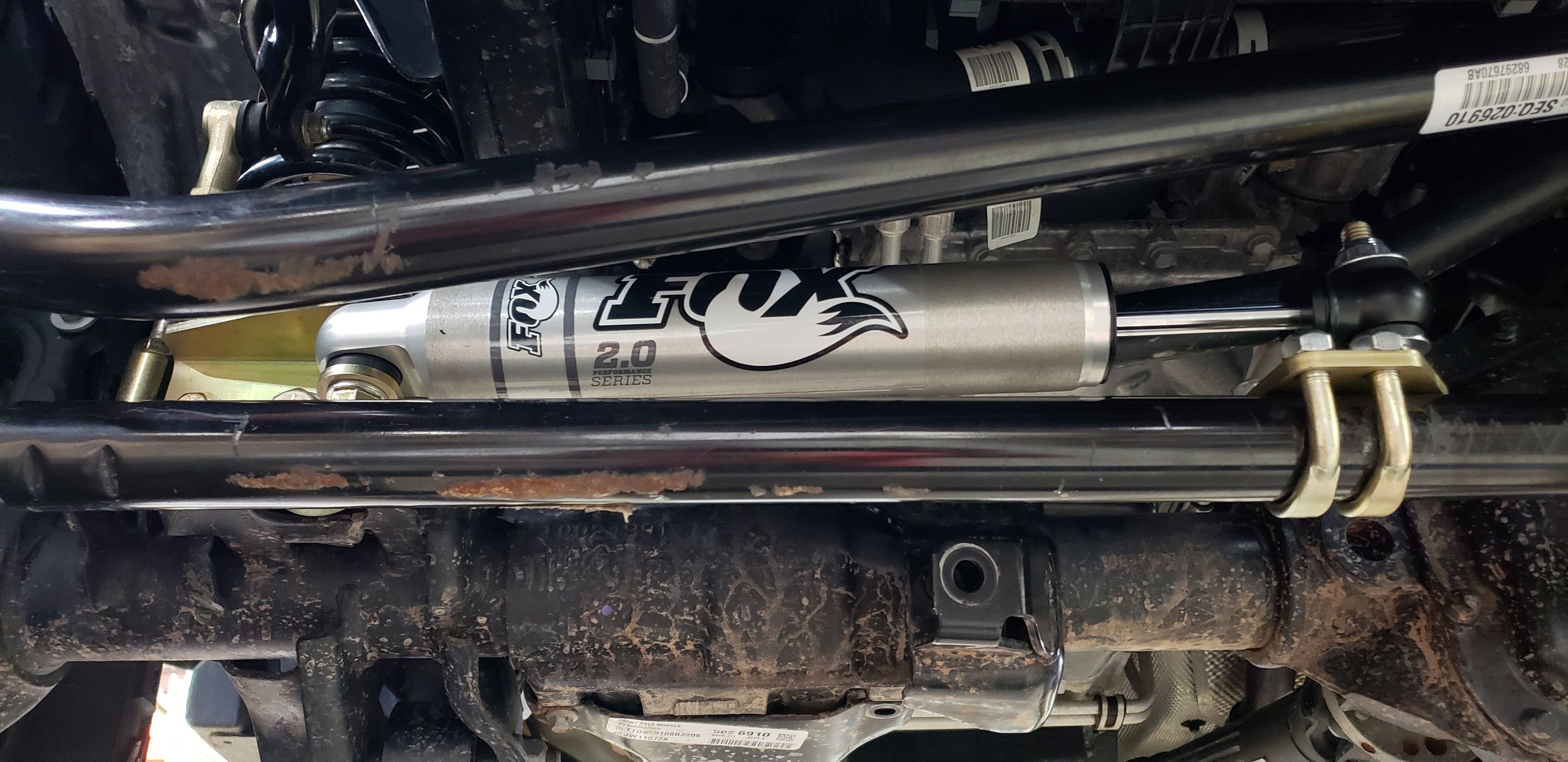

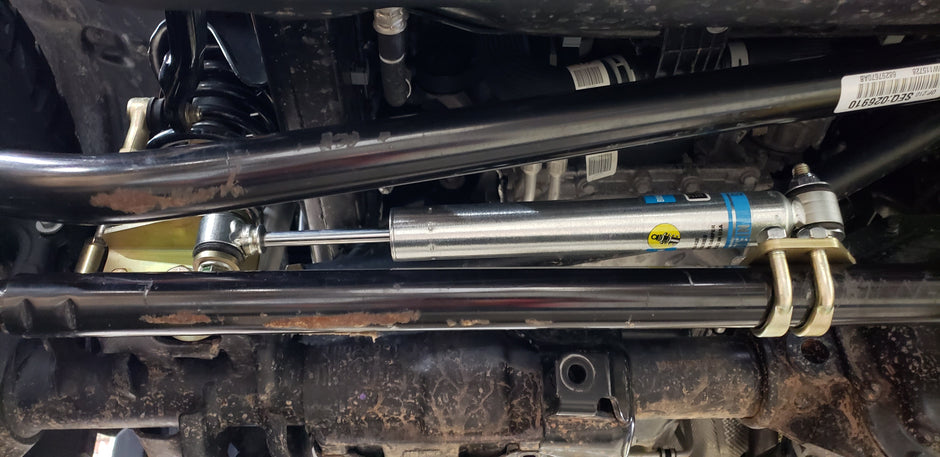

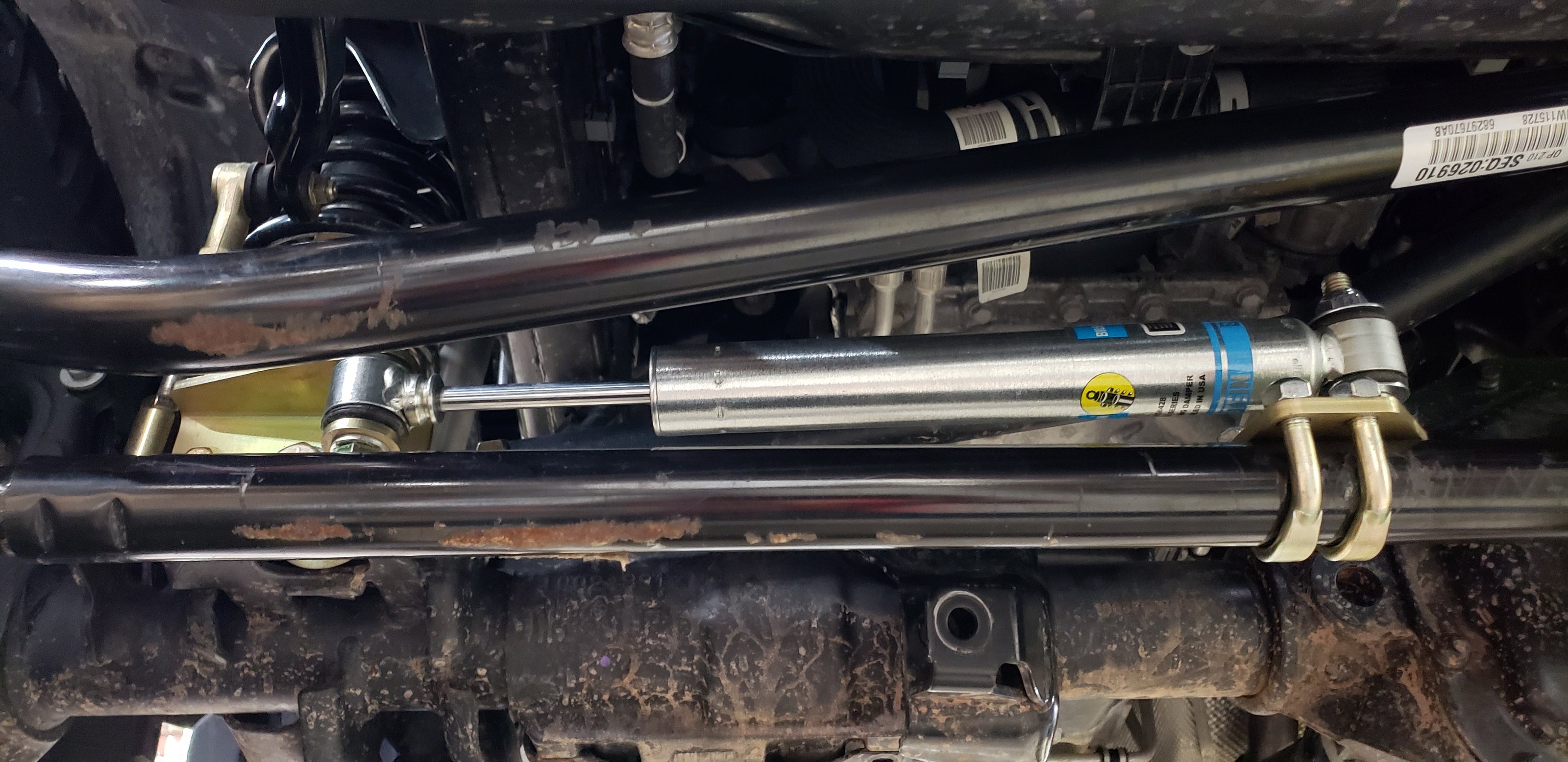

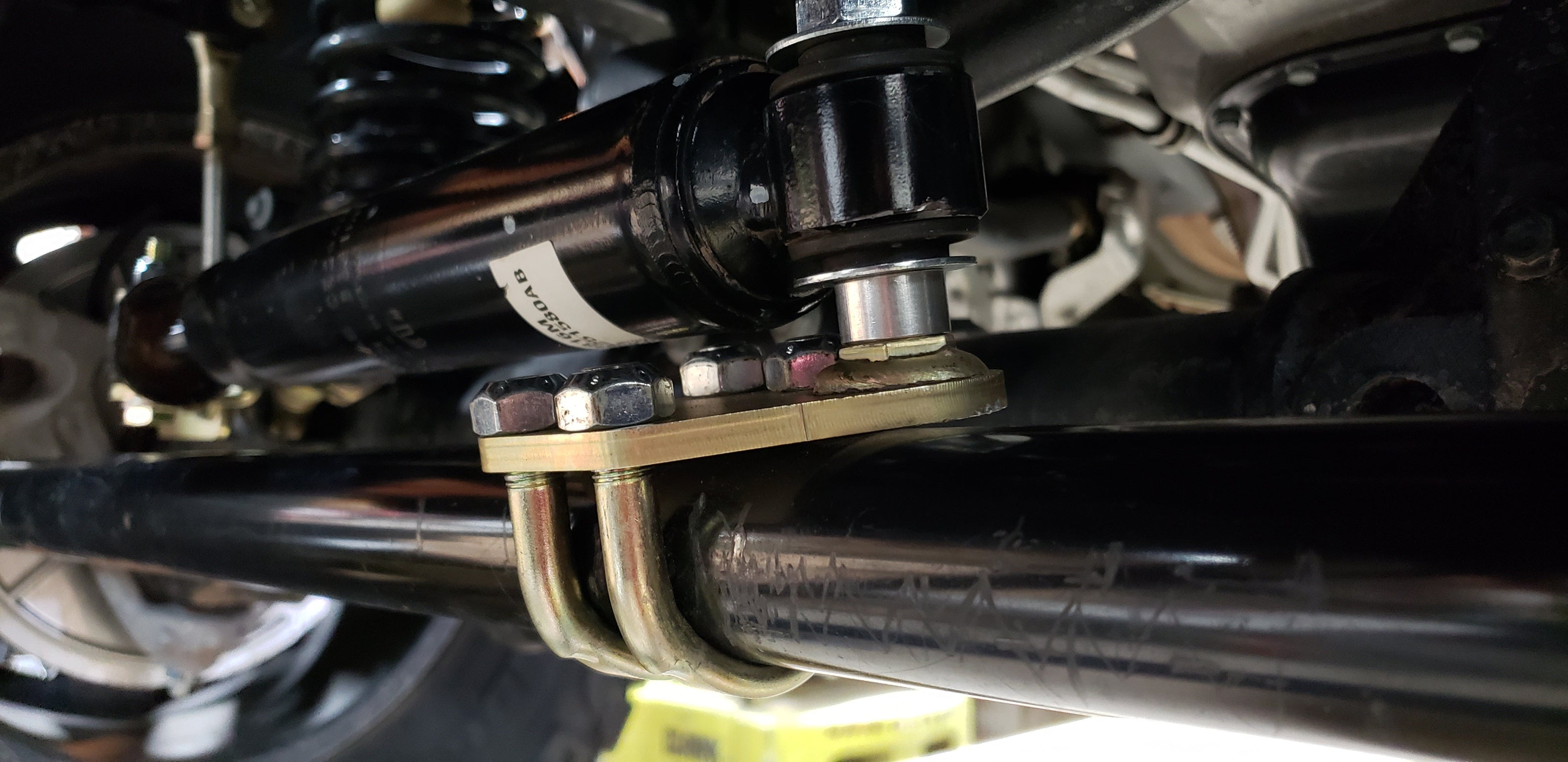

• Clamp this mount to the tie rod or drag link at the desired stabilizer attachment location — verify the clamp is positioned to allow full stabilizer travel through the complete steering sweep without binding.
• Torque the clamp hardware to specification — do not overtorque on aluminum tie rods; verify the clamp does not deform the rod OD under load.
• Install the stabilizer end onto the stud mount and torque the retaining hardware to specification.
• If using with COR-5209010 relocation bracket: install the axle bracket first, then position this clamp on the tie rod to align with the raised stabilizer mount position. Verify stabilizer angle and travel before final torque.
• Verify full steering sweep from lock to lock with no stabilizer binding or contact after installation.
• For JL/JT complete kit: order COR-5209011 which includes both COR-5209010 and this clamp (COR-5200940).

Wheel & Tire Fitment

Compatible with standard JK/JL/JT wheel and tire combinations. Stabilizer mount position affects stabilizer angle and travel — verify no binding through full steering sweep with your specific tire size after installation.

Engineering Question: What is the OD of your tie rod or drag link? This clamp fits rods up to 1-5/8" OD — if your aftermarket tie rod exceeds 1-5/8", this clamp will not fit. Also confirm whether you need just this clamp (COR-5200940) or the complete JL/JT kit (COR-5209011, which includes both the axle relocation bracket and this clamp).
